Recyclable Pd nanoparticles immobilized on amine functionalized LDH for the Suzuki–Miyaura cross-coupling reaction

Seema P. Patil, Sanjay N. Jadhav, Firoz A. Inamdar, Mohd Aatif Ameen, Chandrashekhar V. Rode, Archana S. Rajmane, and Arjun S. Kumbhar

Department of Chemistry, Vivekanand College (Autonomous), Kolhapur, India



Received: 31 December 2022  Accepted: 22 May 2023


In the present work, we invented a Pd nanoparticle immobilized on an amine-functionalized LDH catalyst (PdNP@NH2-LDH-Al-MCM-41) for cross-coupling reactions. The palladium was grafted onto the support by treating the Pd(OAc)2 with NH2-LDH-Al-MCM-41 in acetone at room temperature. The prepared catalyst was characterized by FT-IR, SEM, TGA, TEM, and XPS techniques. The TEM characterization of the catalyst showed the uniform distribution of PdNPs with sizes ranging from 3 to 6 nm located inside the mesoporous. The Suzuki–Miyaura cross-coupling reaction was used to demonstrate the catalytic efficiency of the prepared PdNPs@NH2-LDH-Al-MCM-41 catalyst. The prepared and analyzed catalyst showed good to excellent activity in the Suzuki–Miyaura cross-coupling reaction of various aryl bromides with different aryl boronic acids in ethanol at 80 °C. The catalyst showed TON up to ~ 47 and TOF ~ 47 h−1. The catalytic results exhibited that the catalyst is completely recoverable with simple filtration. The catalytic efficiency shows a slight decrease in activity for the Suzuki–Miyaura cross-coupling reactions even after five repeated recycles. TEM images of the freshly prepared and reused catalysts (after five catalytic cycles) showed palladium nanoparticles remain unchanged at the end of the reactions.

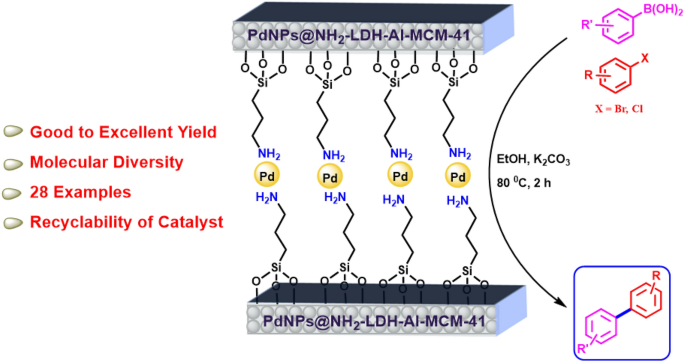

Graphical abstract

Keywords: PdNPs; LDH; Suzuki–Miyaura coupling; Recyclability

Full paper is available at

DOI: 10.1007/s11696-023-02885-2


Chemical Papers 77 (9) 5555–5569 (2023)
